5088 Series 5 GHz Upconverters |
||

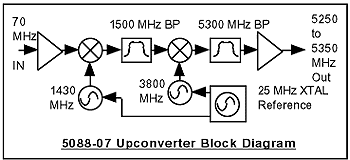

| The Series 5088 5 GHz Upconverters convert IF to 5 GHz with no spectrum inversion, high linearity, good phase noise, flat frequency response, and 1 MHz tuning steps. For the 5088-07, the 70 MHz IF input is mixed with synthesized local oscillator (LO) signals, first to 1500 MHz and finally to 5.30 GHz. The 5088-17 has a 170 MHz IF input and 5.725 to 5.825 GHz output frequency. Other frequencies can be provided. Front panel LEDs indicate DC power is applied (green) and if a PLL alarm occurs (red). The gain is set at 10 dB. Connectors are type F female for the IF input and type N female for the RF output. The 5088 is housed in an 1 3/4” X 19“ X 14“ deep rack mount chassis. | ||
5088 Series Upconverters Front
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency, 5088-07 Frequency, 5088-17 Level range Input 1 dB compression |
75 ohms/15dB 70 ± 20 MHz 170 ± 50 MHz -20 to -30 dBm -10 dBm |
| Output Characteristics | |
|
Impedance/RL Frequency, 5088-07 Frequency, 5088-17 Level, max linear Output 1 dB compression |
50 ohms/10dB 5300 ± 20 MHz 5775 ± 50 MHz -5 dBm 0 dBm |
| Channel Characteristics | |
|
Gain Spurious Response Frequency Response |
10 ± 1.0 dB < -50 dBC in band; < -50 dBC out of band ±1.5dB, entire band; ±0.5 dB, any 10 MHz incr. |
| Synthesizer Characteristics | |
|
Frequency Accuracy Phase Noise (dBC/Hz) |
±10 kHz max over
temp <= -75, 10kHz; <= -90, 100kHz; <= -100, 1MHz |
| Controls, Indicators | |
|
Frequency select DC Power PLL Alarm |
BCD switches
select output left frequency in 1 MHz steps Green LED Red LED |
| Other | |
|
IF
Connectors RF Connectors Size Power |
type F, female type N, female 19"W X 1.75"H X 14.0"D 90-260 VAC, 47-63 Hz, 30W max |
| Models | |
|
5088-07 5088-17 Call for other frequencies |
70 MHz input and
5300 ± 20 MHz output 170 MHz input and 5775 ± 50 MHz output ---- |
*+10 to +40 degrees C; Specifications subject to change without notice
