2098-007 Frequency Source |
||
| The Model 2098-007 Frequency Source, is a 70 MHz, synthesized frequency generator. The 70.000 MHz signal is generated by the VCO controlled by the Phase Lock Loop circuit which is referenced to a 25 MHz Crystal oscillator. The 70 MHz is applied to an amplifier and then to the output switch/attenuator providing a level of 0.0 dBm (high) or -15 dBm (low). A green LED indicates the presence of DC power. Power is provided by a wall transformer for 115 VAC, 60Hz and provides +15 VDC at 150 ma. The Option -P4 wall power supply covers 90-260 VAC, 47-63 Hz. Specify US, EUR, AUS or UK plug for the -P4 option. The connector is BNC female for the 70 MHz output and the impedance is 75 ohms. | ||

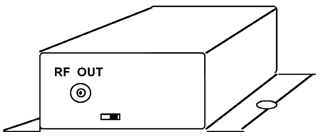

2098-007 Chassis
2098-007

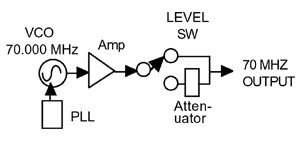

Block Diagram
Equipment
Specifications*
| Output Characteristics | |
|
Impedance Return Loss Frequency Level Harmonics Spurious |
75 ohms >15dB 70.000 ± 0.0005 MHz 0.0 dBm ± 0.5 dB (high level); -15 dBm ± 0.5 dB (low level) < -30 dBC, max; -35 dBC typ for 2nd & 3rd; < -50 dBC for others < -60 dBC, max |
| Synthesizer Characteristics | |
|
Frequency Accuracy Frequency Step Phase Noise (dBC/Hz) |
±0.5 kHz max NONE: fixed tune <= -100, 10kHz; <= -120, 100kHz; <= -130, 1 MHz |
| Controls/Indicators | |
|
Level Select DC Power |
Slide switch selects High (0
dBm) or Low (-15 dBm) level Green LED |
| Other | |
|
RF Connector Size, Power Power (option -P4) |
BNC, female 3.3"W X 1.2"H X 4.0"D (83.8mm X 30.5mm X 101.6mm) Wall Power Supply, 115 VAC, 60Hz provides +15VDC, 150ma Covers 90-260 VAC, 47-63 Hz; specify US, EUR, AUS or UK plug |
*+10 to +40 degrees C; 2000m max elevation; 80% max humidity; Specifications subject to change without notice
