2097 IF Amplifier |
||
| The 2097 IF Amplifier provides automatic Gain Control for a 50 to 100 MHz IF signal for a -80 to 0 dBm input level to a -35 dBm ± 10 dB output. The 2097-07 has a band limiting lowpass filter and automatic gain control (AGC) or manual gain control (MGC) for a -80 to 0 dBm input range. The 2097-07 is powered by a 120 VAC, 60Hz, wall power supply and is housed in an 4.7” wide X 1.75” high X 8.5” deep aluminum chassis. Option -R provides 1 3/4” X 19“ rack mount panel. Option -C has no power supply for use with a Series 2000 Power Supply. | ||

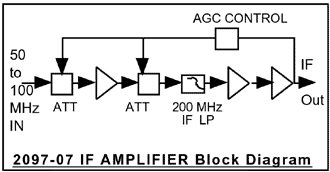

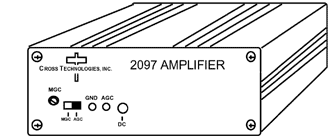

2097 IF Amplifier Front

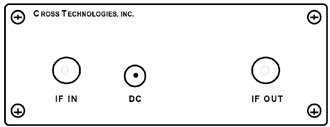

2097 IF Amplifier Rear Panel
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency Level range Input 1dB compression |
50 ohms/10dB 50 to 100 MHz 0 to -80 dBm +5 dBm |
| Output Characteristics | |
|
Impedance/RL Level |
50 ohms/18dB -35 ± 10 dB |
| Channel Characteristics | |
|
Gain Spurious Response Group Delay, max |
-35 to +35 dB,
AGC ± 1.0 dB, ± 18 MHz ± 5 ns, max 50-100 MHz |
| Controls/Indicators | |
|
MGC/AGC MGC Pot DC Power |
Switches between
Manual (MGC) or Automatic (AGC) Gain Control Controls manual (MGC) gain Green LED |
| Other | |
|
IF,
RF Connectors Size, Bench Top Size, Rack Mount (-R) Power |
BNC, female 4.7"W X 1.75"H X 8.5"D 19 inch standard chassis, 1.75"H X 7"D (optional) 120 ± 10% VAC, 60Hz, 20W max, wall mount power supply |
| Models | |
|
2097-07 2097-07R 2097-07C |
wall power supply wall power supply, rack mount no power supply, use with 2000-01 power supply |
*+10 to +40 degrees C; Specifications subject to change without notice
