2089-17 Agile Downconverter

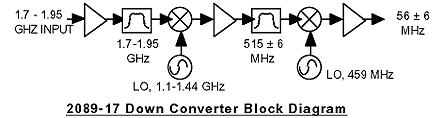

The 2089-17 Agile Downconverter converts a 1700 to 1950 MHz signal to 515 MHz in 1MHz steps with a low side 1185 to 1435 MHz first LO and then to 56 ± 6 MHz with low side 459 MHz LO. Up and down tune push buttons control the output frequency displayed on the LED indicators . Frequency selection can be remotely selected via a RS232C data input. A red LED PLL alarm lights when the PLL is unlocked and goes to an open drain FET output. A Yellow LED indicates remote operation.


 2089-17 Agile Downconverter Front

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Noise Figure
Level Range
Input 1 dB/3rd Order		 75 ohms/18dB
1700 - 1950 MHz
15 dB max (12 dB max design goal)
-30 to -70 dBm
-25/-15 dBm
Output Characteristics
Impedance/RL
Frequency, IF out
Output Spurious
Level w/ -30 dBm in
Output 1 dB/3rd Order		 75 ohms/15dB
56 ± 6 MHz (56 ±8 MHz design goal)
< -40dBC in band, < -25dBC in band at low input
-5 dBm, ±2 dB
+5/+15 dBm
Channel Characteristics
Gain
Frequency Response		 25 ± 2dB
±0.5dB, 6 MHz band
Synthesizer Characteristics
Frequency Accuracy
Tuning steps
Phase Noise(dBC/Hz)
Reference Frequency		 ±10 kHz max
1.0 MHz
<= -75, 10 kHz; <= -90, 100 kHz; <= -100, 1 MHz
25 MHz; 10 MHz external reference for future versions
Indicators
Frequency
DC Power
PLL Alarm		 Four, 7-segment LED displays
Green LED
Red LED
Other
RF, IF Connectors
Size
Power		 type F, female
19"W X 1.75"H X 13.0"D
90-260 VAC, 50-60 Hz, 30W

*+10 to +40 degrees C; 2000m max elevation; 80% max humidity; Pollution Degree 2; Specifications subject to change without notice
