2086-135 Upconverter, 1.35GHz |
||
| The 2086-135 Upconverter converts a 70 MHz IF signal to 1.35 GHz with no spectrum inversion, low group delay, and flat frequency response. The 70 MHz IF input is mixed with a synthesized local oscillator (LO) signal to 1.35 GHz. The frequency is fixed. Other IF and RF frequencies can be provided on request. A green front panel LED lights when DC power is applied. Connectors are BNC female for IF input and Type F for the RF output. Power is provided by a 120 ± 10% VAC, 60Hz, wall mount power supply. The 2086-13 Upconverter is housed in an 4.7” wide X 1.75” high X 12.5” deep aluminum chassis. The 2086 can be mounted on an 1 3/4” X 19 “ rack mount panel (option -R). | ||

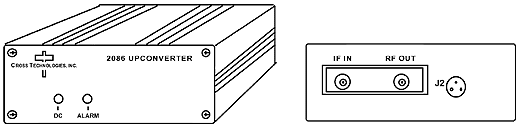

2086-13 Upconverter Chassis and Rear Panel
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency, 2086-13 Level Range Input 1 dB/3rd Order |
75 ohms/18dB 70 ± 15 MHz -10 to -20 dBm 0/+10 dBm |
| Output Characteristics | |
|
Impedance/RL Frequency, 2086-13 |
75 ohms/18dB 1.35 GHz |
| Channel Characteristics | |
|
Gain Spurious Response Frequency Response Group Delay, max |
0 ± 1.0dB < -50dBC ±0.5dB, ±15MHz ±5ns, ±10MHz; ±15ns, ±15MHz |
| Synthesizer Characteristics | |
|
Frequency Accuracy Tuning steps Phase Noise(dBC/Hz) |
±25 kHz max over
temp none, fixed tuned <= -80, 10kHz; <= -90, 100kHz; <= -100, 1 MHz |
| Indicators | |
| DC Power | Green LED |
| Other | |
|
IF
Connectors RF Connectors Size, Bench Top Size, Rack Mount (-R) Power |
BNC, female Type F, female 4.7"W X 1.75"H X 13.0"D 19 inch standard chassis, 1.75"H X 14.0"D (optional) 120 ± 10% VAC, 60 Hz, 20W max, wall mount pwr supply |
| Models | |
|
2083-13 2083-13R 2086-13C Call for other frequencies |
70 MHz in, 1.35
GHz out, wall pwr supply 70 MHz in, 1.35 GHz out, wall pwr supply, rack mount 70 MHz in, 1.35 GHz out, no pwr supply, use with 2000-01 pwr supply ---- |
*+10 to +40 degrees C; Specifications subject to change without notice
