2016-25 Downconverter, 2200 to 2500 MHz

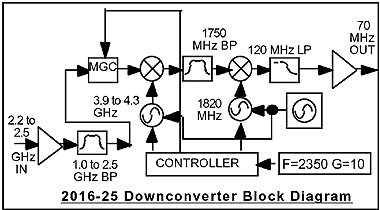

The 2016-25 Downconverter converts 2200 to 2500 MHz to 70 ± 18 MHz in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency and gain. Front panel LEDs provide indication of DC power (green) and PLL alarm (red). Variable attenuators for the RF input provide a gain range of 0 to +50 dB as adjusted by the front panel multi-function pushbutton switches. Frequency and gain settings appear on the LCD display. Connectors are BNC female for RF and IF signals. Powered by a 90-260 VAC power supply; 1 3/4” X 19 “ X 16” rack mount chassis.


 2016-25 Downconverter Front Panel

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Noise Figure, max.
Level range
Input 1dB comp		 50 ohms/12dB
2200 to 2500 MHz
15 dB, max gain
-20 to -70 dBm
-15 dBm, min gain
Output Characteristics
Impedance/RL
Frequency
Output level
Output 1dB		 75 ohms/18dB
70 ± 18 MHz
-20 to -30 dBm
-15 dBm
Channel Characteristics
Gain
Image Rejection
Spurious Response
Frequency Response
Group Delay, max
Frequency Sense		 0.0 to 50.0 dB, 0.1 dB steps (manually adjustable)
> 50 dB, min.
< -45 dBC in band (± 18 MHz)
±2.0 dB, entire band; ±1.0 dB, 36 MHz BW
5 ns, 30 MHz, 8 ns, 36 MHz BW
Non-inverting
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise (dBC/Hz)		 ±1.0 ppm max over temp
1.0 MHz min.
< -70, 0.1, 1.0 kHz; < -80, 10 kHz; < -90, 100kHz; < -100, 1MHz
Controls/Indicators
Frequency Selection
Gain Selection
Alarm
DC Power		 Direct readout LCD; push button switches or remote selection
Direct readout LCD; push button switches or remote selection
Red LED
Green LED
Other
RF Connector
IF Connector
Connector, Alarm, Remote
Size
Power		 Type F, female
BNC, female
DB9 - NO or NC contact closure on Alarm
19 inch 1RU standard chassis, 1.75"H X 16.0"D
90-260 VAC, 47-63 Hz, 45W max
Models
2016-25
2016-25S10		 2200-2500 MHz Input, 70 MHz ± 18 MHz Output
2200-2500 MHz Input, 70 MHz Output, 10 MHz SAW IF filter

*+10 to +40 degrees C; Specifications subject to change without notice
