2016-12 Agile L-Band Downconverter |
||
|

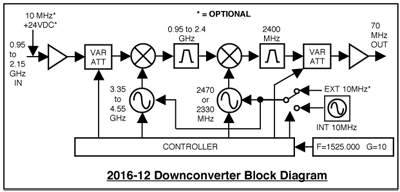

The 2016-12 L-band Downconverter converts 950 to 2150 MHz in 1 kHz, 10 kHz, or 125 kHz steps (user selectable) to 70 ± 18 MHz with low group delay and flat frequency response. Synthesized local oscillators (LO) provide very low phase noise and ±0.01 ppm stability frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), and remote operation (yellow). Gain is adjustable manually over a 0 to +50 dB range as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF output and the optional external reference input and output, and Type F female for the RF input. LNB +24 VDC, 0.4 Amps and 10 MHz reference can be inserted on the RF line as added options. The 10 MHz option also includes a 10 MHz output connector, which contains either the internal or external 10 MHz reference signal. The unit is powered by a 90-260 VAC power supply, and housed in a 1 3/4” X 19 “ X 16” rack mount chassis. |
||
2016-12 Agile L-Band Downconverter Front Panel
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency (see models) Noise Figure, max. Level range Input 1dB comp |
75 ohms/10dB 950 to 2150 MHz 15 dB (max gain) -20 to -70 dBm -15 dBm, min. gain |
| Output Characteristics | |
|
Impedance/RL Frequency Output level/max linear Output 1dB |
75 ohms/18dB 70 ± 18 MHz -20/-10 dBm -5 dBm |
| Channel Characteristics | |
|
Gain Image Rejection Spurious Response Frequency Response Group Delay, max Frequency Sense |
0.0 to 50.0 dB, 1
dB steps > 50 dB < -50 dBC in band (± 18 MHz) ±1.5dB, entire band; ±0.5dB, 36 MHz BW 3 ns, 30 MHz, 5 ns, 36 MHz BW Non-inverting or Inverting (selectable) |
| Synthesizer Characteristics | |
|
Frequency Accuracy Frequency Step Phase Noise (dBC/Hz) 10 MHz Level (In or Out) |
±0.01 ppm 1kHz, 10kHz, or 125kHz (selectable) < -75 @ 100Hz; < -90 @ 1.0 kHz; < -97 @ 10 kHz; < -107 @ 100kHz; < -120 @ 1MHz 0 dBm, ±3 dB, 75 ohms (option -E) |
| Controls/Indicators | |
|
Frequency Selection Gain Selection Alarm DC Power Remote |
Direct readout
LCD; push button switches or remote selection Direct readout LCD; push button switches or remote selection Red LED Green LED Yellow LED; RS232C, 9600 baud (RS485, option -Q) |
| Other | |
|
RF
Connector IF Connector 10 MHz Connectors Connector, Alarm, Remote Size Power |
Type F, female BNC, female BNC, female (option -E) DB9 - NO or NC contact closure on Alarm 19 inch 1RU standard chassis, 1.75"H X 16.0"D 90-260 VAC, 47-63 Hz, 45W max |
| Options | |
|
-E -L -Q -T |
External 10 MHz
ref input and output w/ RF insertion LNB +24 VDC, 0.4 Amps with readout of current RS485 Remote Interface Temperature Sensor |
*+10 to +40 degrees C; Specifications subject to change without notice
