2016-04, -05 Agile L-Band Downconverter

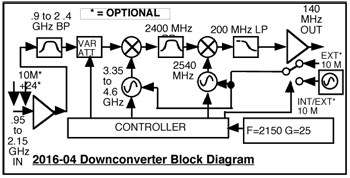

The Series 2016 Downconverter converts 950 to 2150 MHz (-04) or 950 to 1525 MHz (-05) to 140 MHz in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC power, PLL alarm or Remote operation. Gain is adjustable manually over a 0 to 50 dB range. The frequency and gain are remotely selectable. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are Type F female for the RF and BNC female for the IF and external reference input (optional). LNB +24 VDC and 10 MHz reference can be inserted on the RF lines (options -L and -E, respectively). Powered by a 90-260 VAC power supply, and housed in a 1 3/4” X 19 “ X 16” rack mount chassis.




 2016-04 Agile L-Band Downconverter Front Panel

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency (see models)
Noise Figure, max.
Level range
Input 1dB comp		 75 ohms/10dB
to 950-2150 MHz
15 dB, max gain
-20 to -70 dBm
-15 dBm
Output Characteristics
Impedance/RL
Frequency
Output level/max linear
Output 1dB		 75 ohms/18dB
140 ± 18 MHz
-20/-10 dBm
-5 dBm
Channel Characteristics
Gain
Image Rejection
Spurious Response
Frequency Response
Group Delay, max
Frequency Sense		 0.0 to 50.0 dB, 1 dB steps (manually adjustable)
> 50 dB
< -45 dBC in band (± 18 MHz) at -20 dBm out
±1.5dB, entire band; ±0.5dB, 36 MHz BW
3 ns, 30 MHz, 5 ns, 36 MHz BW
Non-inverting
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise (dBC/Hz)
External 10 MHz level		 ±1.0 ppm max over temp (±0.01 ppm optional), internal ref (ext ref option -E)
1.0 MHz min (other options available)
< -70, 0.1, 1.0 kHz; < -80, 10 kHz; < -90, 100kHz; < -100, 1MHz
0 dBm, ±3 dB, 75 ohms (option -E)
Controls/Indicators
Frequency Selection
Gain Selection
Alarm
DC Power
Remote		 Direct readout LCD; push button switches or remote selection
Direct readout LCD; push button switches or remote selection
Red LED
Green LED
Yellow LED; RS232C, 9600 baud
Other
RF Connector
IF Connector
10 MHz Conn (option -E)
Connector, Alarm/Remote
Size
Power		 Type F, female
BNC, female
BNC, female
DB9 - NO or NC contact closure on Alarm
19 inch 1RU standard chassis, 1.75"H X 16.0"D
90-260 VAC, 47-63 Hz, 45W max
Models
2016-04
2016-05
-E
-L
-H		 950-2150 MHz Input, 140 MHz Output
950-1525 MHz Input, 140 MHz Output
Allows external 10MHz ref input, 10MHz ref can be inserted on the RF in
LNB +24 VDC, 0.4 Amps with readout of current
High Stability (±0.01 ppm) internal reference

*+10 to +40 degrees C; Specifications subject to change without notice
