2016-02, -03 Agile L-Band Downconverter


The 2016 L-band Downconverter converts 950 to 2150 MHz (2016-02) or 950 to 1525 MHz (2016-03) in 1 MHz steps to 70 ± 18 MHz with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), and remote operation (yellow). Gain is adjustable manually over a 0 to +50 dB range as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF output and the optional external reference input and output, and Type F female for the RF input. LNB +24 VDC, 0.4 Amps and 10 MHz reference can be inserted on the RF line as added options. The 10 MHz option also includes a 10 MHz output connector, which contains either the internal or external 10 MHz reference signal. A high stability (±0.01ppm) option is also available. The unit is powered by a 90-260 VAC power supply, and housed in a 1 3/4” X 19 “ X 16” rack mount chassis.


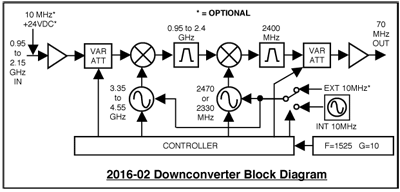

 2016 Agile L-Band Downconverter Front Panel

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency (see models)
Noise Figure, max.
Level range
Input 1dB comp		 75 ohms/10dB
up to 2150 MHz
15 dB (max gain)
-20 to -70 dBmf
-15 dBm
Output Characteristics
Impedance/RL
Frequency
Output level/max linear
Output 1dB		 75 ohms/18dB
70 ± 18 MHz
-20/-10 dBm
-5 dBm
Channel Characteristics
Gain
Image Rejection
Spurious Response
Frequency Response
Group Delay, max
Frequency Sense		 0.0 to 50.0 dB, 1 dB steps
> 50 dB
< -50 dBC in band (± 18 MHz)
±1.5dB, entire band; ±0.5dB, 36 MHz BW
3 ns, 30 MHz, 5 ns, 36 MHz BW
Non-inverting or Inverting (selectable)
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise (dBC/Hz)
External 10 MHz level		 ±1.0 ppm max over temp (±0.01 ppm option -H), internal ref; ext ref optional
1.0 MHz (as low as 1 kHz available)
< -70 @ 100Hz, 1.0kHz; < -80 @ 10kHz; < -90 @ 100kHz; < -100 @ 1MHz
0 dBm, ±3 dB, 75 ohms (option -E)
Controls/Indicators
Frequency Selection
Gain Selection
Alarm
DC Power
Remote		 Direct readout LCD; push button switches or remote selection
Direct readout LCD; push button switches or remote selection
Red LED
Green LED
Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Other
RF Connector
IF Connector
10 MHz Connectors
Connector, Alarm, Remote
Size
Power		 Type F, female
BNC, female
BNC, female (option -E)
DB9 - NO or NC contact closure on Alarm
19 inch 1RU standard chassis, 1.75"H X 16.0"D
90-260 VAC, 47-63 Hz, 45W max
Models
2016-02
2016-03
-E
-H
-L
-Q
-T		 950-2150 MHz Input, 70 MHz Output
950-1525 MHz Input, 70 MHz Output
Allows external 10MHz ref input, 10MHz ref can be inserted on the RF in
High Stability (±0.01 ppm) internal reference
LNB +24 VDC, 0.4 Amps with readout of current
RS485 Remote Interface
Temperature Sensor

*+10 to +40 degrees C; Specifications subject to change without notice
