2015-04, -05 Agile L-Band Upconverter |
||

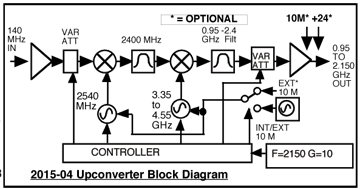

| The 2015-04 L-Band Upconverter converts 140 ± 18 MHz to 950 to 2150 MHz or 950 to 1525 MHz (-05) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), Remote operation (yellow) or the TX carrier is muted (red). Variable attenuators for the IF input and output provide a gain range of -10 to +30 dB as adjusted by the front panel multi-function pushbutton switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and external reference input, and Type F female for the RF output (others optional). SSPB +24 VDC, 2.5 Amps and 10 MHz reference can be inserted on the RF lines (optional). Powered by a 90-260 VAC power supply; 1 3/4” X 19 “ X 16” rack mount chassis. | ||
2015 Agile L-Band Upconverter Front Panel
Equipment
Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency Level, max |
75 ohms/18dB 140 ± 18 MHz -40 to -10 dBm |
| Output Characteristics | |
|
Impedance/RL Frequency (see models) Level Output 1dB |
75 ohms/10dB To 2150 MHz 0 to -20 dBm +5 dBm |
| Channel Characteristics | |
|
Gain range
(adjustable) Spurious Response Frequency Response Group Delay, max Frequency Sense |
-10 dB to +30 dB < -50 dBC ±1.5dB, over output frequency range; ±0.5dB, 36 MHz BW 3 ns, 30 MHz; 5 ns, 36 MHz BW Non-inverting |
| Synthesizer Characteristics | |
|
Frequency Accuracy Frequency Step Phase Noise (dBC/Hz) External 10 MHz level |
±1.0 ppm max over temp (±0.01
ppm optional), internal ref; ext 10MHz ref optional 1.0 MHz min < -70, 0.1, 1.0 kHz; < -80, 10kHz; < -90, 100kHz; < -100, 1MHz 0 dBm, ±3 dB, 75 ohms (option -E) |
| Controls/Indicators | |
|
Frequency Selection Gain Selection Alarm DC Power Remote Mute |
Direct readout LCD; push button
switches or remote selection Direct readout LCD; push button switches or remote selection Red LED Green LED Yellow LED; RS232C, 9600 baud Red LED |
| Other | |
|
RF Connector IF Connector 10 MHz Connector Connector, Alarm, Remote Size Power |
Type F, female BNC, female BNC, female DB9 - NO or NC contact closure on Alarm 19 inch 1RU standard chassis, 1.75"H X 16.0"D 90-260 VAC, 47-63 Hz, 45W max |
| Models | |
|
2015-04 2015-05 -E -V -H |
950-2150 MHz output, 140 MHz
input 950-1525 MHz output, 140 MHz input Allows external 10MHz ref input, 10MHz ref can be inserted on the RF out SSPB +24 VDC, 2.5 Amps with readout of current High Stability (±0.01 ppm) internal reference |
*+10 to +40 degrees C; Specifications subject to change without notice
