2009-72P, -79P X-band Test Downconverters |
||
| The 2009 Test Downconverters convert an X-band signal to 950 - 1450 MHz with a low side local oscillator (LO) (non-inverted spectrum). Featuring low phase noise, these units are used to downconvert “clean” (having only this frequency) X-band signals to 950 - 1450 MHz for test purposes. The X-band input is mixed with a synthesized local oscillator (LO) signal to 950 - 1450 MHz. The mixer output is applied to the output amplifier providing a nominal gain of -10 dB. Connectors are 75 ohm BNC female for the 950 - 1450 MHz output and 50 ohm SMA, female for the RF input. Front panel LEDs light when DC power is applied (green) and when a PLL alarm occurs (red). DC power is provided by an external wall mount power supply. The 2009 can be mounted on an 1 3/4” X 19“ rack mount panel (option -R) | ||
2009-72P, -79P Test Downconverter Front
2009-72P, -79P Test Downconverter
Rear Panel

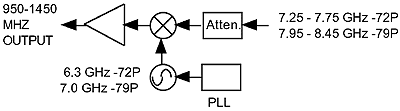

2009-72P, -79P Test Downconverter
Block Diagram
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Frequency Level, max Input 1dB compression |
50 ohms/10dB 7.25 to 7.75 GHz (-72P); 7.95 to 8.45 GHz (-79P) -10 to -20 dBm 0 dBm |
| Output Characteristics | |
|
Impedance/RL Frequency |
75 ohms/10dB 950 to 1450 MHz |
| Channel Characteristics | |
|
Gain
at band left Spurious Response Frequency Response |
-10dB ±2dB < -40dBC, 950-1450 MHz out ±2dB, 950-1450 MHz; ±0.5dB, any 10 MHz incr. |
| Synthesizer Characteristics | |
|
Frequency Accuracy Phase Noise (dBC/Hz) |
±10ppm max <= -75, 10kHz; <= -90, 100kHz; <= -100, 1MHz |
| Indicators | |
|
DC
Power Alarm |
Green LED Red LED |
| Other | |
|
RF IN
Connectors RF OUT Connectors Size, Bench Top Size, Rack Mount (-R) Power |
SMA, female BNC, female 4.7"W X 1.75"H X 6.5"D 19 inch standard chassis, 1.75"H X 7"D (optional) 120 ± 10% VAC, 60Hz, 15W max, wall mount power supply |
| Models | |
|
2009-72P 2009-79P |
7.25-7.75 GHz in,
950-1450 MHz out,Wall Power Supply 7.95-8.45 GHz in, 950-1450 MHz out, Wall Power Supply |
*+10 to +40 degrees C; Specifications subject to change without notice
