2006-11, -12 Satellite Test Upconverter |
||
| The 2006 Test Upconverter converts a 70 or 140 MHz signal to L-Band with a 1130 MHz LO frequency (-11) or to an LBand at a frequency specified at order (-12). The IF input goes to the gain selection switch providing -5 or -25 dB gain. DC power is provided by the receiver LNB voltage. Connectors are BNC female for the IF input and F, female for the RF output. An external power supply (option -P) is available. | ||

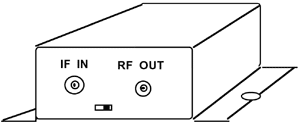

2006 Test Upconverter

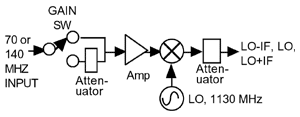

2006 Test Upconverter Block
Diagram
Equipment Specifications*
| Input Characteristics |
2006-11
|
2006-12
|
|
Impedance/RL Frequency Level Range Input 1dB/3rd Order |
75 ohms/15dB 70 or 140 MHz left -30 to -10dBm (low gain); -50 to -30dBm (high gain) 0dBm (low gain); -20dBm (high gain) |
same same same same |
| Output Characteristics | ||
|
Impedance/RL Frequency, LO Frequency, Ku Frequency, C Level, w/ -10dBm in |
75 ohms/12dB 1130 MHz 1200 (70 in), 1270 (140 in) MHz 1060 (70 in), 990 (140 in) MHz -35 dBm (low gain) |
same 1020 - 1520 MHz, fixed LO + 70, + 140 MHz LO - 70, - 140 MHz same |
| Channel Characteristics | ||
|
Gain Spurious Response Frequency Response |
-25dB ±3dB (low gain); -5dB ±3dB (high gain) NA; output not filtered ±0.5dB, any 10 MHz incr. |
same same same |
| Synthesizer Characteristics | ||
|
Frequency Accuracy Frequency Step Phase Noise(dBC/Hz) |
±25kHz max NONE: fixed tuned <= -80, 10 kHz; <= -90, 100 kHz; <= -100, 1 MHz |
same same same |
| Controls/Indicators | ||
|
Gain Select DC Power |
Slide switch selects HIGH or LOW gaiin Green LED |
same same |
| Other | ||
|
RF Connectors IF Connectors Size, Power AC Power (-P) |
type F, female BNC, female 3.4"W X 1.7"H X 4.0"D +14 to +20 VDC, 150mA on RF In 120 ± 10% VAC, 60Hz, 10W max, wall power supply (optional) |
same same same same same |
*+10 to +40 degrees C; 2000m max elevation; 80% max humidity; Pollution Degree 2; Specifications subject to change without notice
