2003 Agile Satellite Test 0.95-1.45 GHz Upconverter

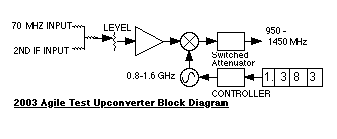

The 2003 Agile Test 0.95-1.45 GHz Upconverter takes a 70 or 140 MHz IF and converts it to 950 to 1450 MHz in 1MHz steps. The 70 MHz input is mixed with a synthesized 1020 - 1520 (C) or 880 - 1.38 (Ku) MHz local oscillator signal. The output frequency is selected using up and down tune push button switches which control the synthesized oscillator. Pushing these switches simultaneously allows selection of high side LO (C) or low side LO (Ku) and 70 or 140 MHz input. The 2003 has a front panel alarm LED that lights when the PLL is unlocked and this alarm signal goes to an open drain FET output. A yellow LED on the front panel indicates remote operation. The output of the mixer is applied to the output switched attenuator providing IF to RF gains of -25dB, -45dB, or -65dB. Power is via a wall-mount power supply; connectors are BNC female.

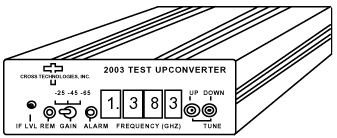

 2003 Agile Test Upconverter Front

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Level, max
Input 1dB/3rd Order		 75 ohms unbalanced/15dB
70 or 140 MHz left
-10 to -20 dBm
+5/+15 dBm
Output Characteristics
Impedance/RL
Frequency
Level		 75 ohms unbalanced/10dB
0.95-1.45 GHz
selectable -35dBm, -55dBm, or -75dBm with -10dBm in
Channel Characteristics
Gain, max
Spurious Response
Frequency Response		 selectable -25, -45, -65 dB ±3dB
NA; output not filtered
±0.5dB, over 10MHz
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise		 ±25kHz max
1.0 MHz min
Suitable for 64 kB/s QPSK with 1/2 rate FEC
Controls/Indicators
Frequency Selection
Output Level
PLL Alarm
Remote		 PB switches w/ direct frequency readout
Potentiometer and Toggle switch adjustments
Red LED (w/ FET open drain)
Yellow LED
Other
RF, IF Connectors
Size, Bench Top
Size, Rack Mount (-R)
Power, for -32		 BNC, female
4.7"W X 1.75"H X 12.5"D
19 inch standard chassis, 1.75"H X 13"D (optional)
120 ± 10% VAC, 60Hz, 20W max, wall mount power supply

*+10 to +40 degrees C; Specifications subject to change without notice
