2002-32, -33 Agile Test Upconverter


The 2002-32 and -33 convert a 36 MHz IF signal to 199 to 319 MHz in 1MHz steps with a low side 163 to 283 MHz LO. The IF input is mixed with a synthesized 163 - 283 MHz local oscillator signal. Up and down tune push buttons control the output frequency displayed on the LED indicators. PLL alarm lights red LED when the PLL is unlocked and goes to an open drain FET output. IF to RF gain is +3 dB. Powered by a wall power supply; connectors are BNC female. The 2002-32 includes a wall power supply and the 2002-33 takes an external power supply. Rack mount option -R.

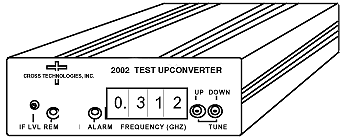

 2002-32, -33 Agile Test Upconverter Front

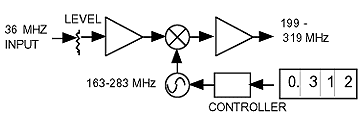

 2002-32, -33 Agile Test Upconverter Block Diagram

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Level
Input 1dB/3rd Order		 75 ohm/15dB
36 MHz left
-10 to -20 dBm
0/+10 dBm
Output Characteristics
Impedance/RL
Frequency
Level		 50 ohms/10dB
199-319 MHz
fixed -12dBm, with -15dBm in
Channel Characteristics
Gain, max
Spurious Response
Frequency Response		 +3dB ±2dB
NA; output not filtered
±2dB, 199-319 MHz; ±0.5dB, any 10 MHz incr.
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise		 ±10kHz max
1.0 MHz min
Suitable for 64 kB/s QPSK with 1/2 rate FEC
Controls/Indicators
Frequency Selection
Output Level
PLL Alarm
Remote
Frequency		 PB switches w/ direct frequency readout
Potentiometer for small adjustments
Red LED
Yellow LED
Four digit display shows desired output freq in GHz
Other
RF, IF Connectors
Size, Bench Top
Size, Rack Mount (-R)
Power, for -32		 BNC, female
4.7"W X 1.75"H X 8.5"D
19 inch standard chassis, 1.75"H X 13"D (optional)
120 ± 10% VAC, 60Hz, 20W max, wall mount power supply

*+10 to +40 degrees C; Specifications subject to change without notice
