1594-01 Audio/Data Encoder

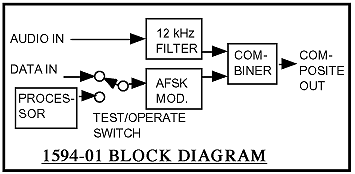

The 1594-01 takes a serial data stream which provides real time indication of zone addresses to which the audio is intended to go, modulates this on an AFSK data carrier and combines this data carrier with the audio. An internal processor provides a test signal which can be used to select any one or all zones for set up and test purposes. This unit works in conjunction with an external automated paging computer to provide an intercom paging system over a cable system. Spectrum efficient, this system requires only one analog, narrowband channel on the CATV system. The output is a composite audio signal which can be inserted to an FM CATV modulator such as a Norsat FM60. A wall power supply provides DC power to the 1594-01. The unit is housed in an aluminum extrusion chassis and mounted on an 1 3/4”, rack panel.

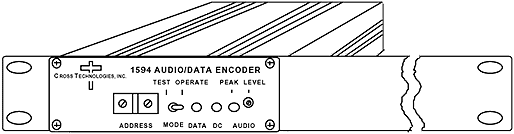

 1594-01 Audio/Data Encoder Front Panel

Equipment Specifications*


Data Characteristics
Input Level
Data rate
AFSK Frequencies		 RS232C
9.6kB/s, Async
22.5, 29.5 kHz
Audio Characteristics
Input Impedance
Input Level (PPL)
Frequency Response
Connector		 600 ohm or 50 kohm selectable
0 to +8 dBm
50 Hz to 12 kHz, ±1dB
Terminal Block
Composite Characteristics
Output Impedance
Peak deviations (PPL)
Connector
 		 100 ohm, unbalanced
Audio, 75kHz; Data, 25kHz
Terminal Block

Controls/Indicators
Test/Operate Switch
Audio Level
DATA LED
PEAK LED
POWER		 Switches between external (Operate) and internal (Test) data
Adjusts audio level
Green LED lights if data is present
Yellow LED lights when audio is at peak deviation
Green LED lights when power is on
Other
Mechanical
Power		 19 inch standard chassis; 1.75"H X 12.5"D
115 ± 10 VAC, 60 Hz, 10W, Wall Power Supply


*Specifications subject to change without notice
