1584 S-Series RF Splitters |
||

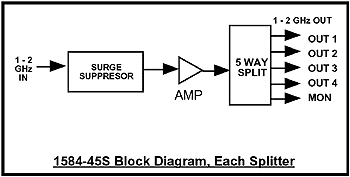

| The 1584 S-Series RF Splitters are just like the 1584 RF Splitters except that they do not provide any fused LNB power insertion and there is only one power supply (no redundancy). They are available in three models. The 1584-25S contains two five-way splitters, the 1584-29S contains two nine-way splitters, and the 1584-45S contains four five-way splitters. All splitters are 0.95 - 2 GHz, 0 dB gain splitters and each model is contained in a 1 Rack Unit chassis with a single 115 VAC power supply. Each splitter has a monitor connector on the front panel and four or eight outputs on the back panel. One 115 VAC input power supply provides + 15 VDC voltage to power the internal amplifiers. A surge suppressor on each input protects against high voltage transients. On the front panel, a green LED indicates the presence of voltage at the power supply output. | ||

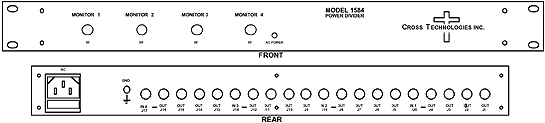

1584-45S RF Splitter Front and Rear Panel
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Level |
75 ohms/10dB,
min, 0.95-2.05 GHz; 14dB, typ, 0.95-1.75 GHz -20 dBm total maximum |
| Output Characteristics | |
| Impedance/RL | 75 ohms/10dB, min, 0.95-2.05 GHz; 14dB, typ, 0.95-1.75 GHz |
| In-Band Characteristics | |
|
Gain Frequency Response Port to Port Isolation |
0 dB ± 1.0 dB ±1.0dB, 0.95-2.05GHz; ±0.5dB, any 20 MHz incr. >18dB min, 20dB typ |
| Indicators | |
|
Power |
Green LED indicates DC voltage at power supply output |
| Other | |
|
Surge
Suppressor RF Connectors Mechanical Power |
SiDACTOR Type F, female 19" standard chassis; 1.75"H X 12"D 90-260 VAC, 50-60Hz, 30W |
| Models | |
|
1584-25S 1584-29S 1584-45S |
two, five-way
splitters two, nine-way spllitters four, five-way splitters |
*+10 to +40 degrees C; Specifications subject to change without notice
