1583-09 RS232C Data Splitter


The 1583-09 Data Splitter provides 9 RS232C outputs of the data signal (pin 2 of the DB9 connector). One of the outputs is a hard wired pass through of the input which can be used for very important functions or to further split the data. Dual power supplies provide redundant power to the 1583-09 with front panel LEDs indicating proper power supply operation. The unit is housed in a 1 3/4”, rack mount chassis and all data connectors are DB9, female.



 1583-09 Data Splitter Front Panel

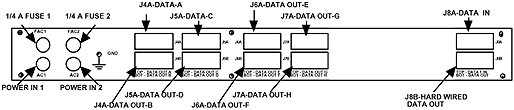

 1583-09 Data Splitter Rear Panel

Equipment Specifications*


Data Characteristics
Input/Output
Data Rate
Number of Outputs
Connector
 		 RS232C
128 kB/s max
1 - Hard wired loop of input; 8 - Buffered RS232C outputs
DB9, female

Indicators
POWER CH1 LED
POWER CH2 LED		 Green when power is applied to number 1 input on the rear panel
Green when power is applied to number 2 input on the rear panel
Other
Mechanical
Power		 19" standard chassis; 1.75"H X 7.5"D
115 ± 10 VAC, 60Hz, 10W

*Specifications subject to change without notice
