284 Series RF Splitters |
||
|

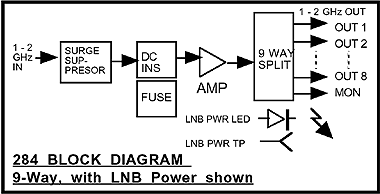

The Model 284 RF Splitters are five or nine way, 0.95 - 2.05 GHz, 0 dB gain splitters providing excellent RF characteristics and available with fused LNB DC power insertion. Each unit contains a five or nine way, 0.95 - 2.05 GHz, 0 dB gain splitter. Each splitter has a monitor connector on the front panel and four or eight outputs on the back panel. A Sidactor surge suppressor on the LNB input protects against high voltage transients. The LNB power versions provide + 18 VDC voltage to power the LNBs through DC power inserters. On the front panel, green LEDs indicate presence of +18 VDC at the LNB power supply output and DC voltage test points allow monitoring the LNB voltage with a voltmeter. Up to three 284s can be mounted on an 1 3/4” X 19 “ rack mount panel (option -R1, R2, or R3). |
||

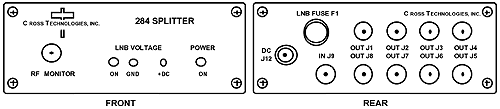

284-19 RF Splitter Front and Rear Panels
Three 284's mounted on optional -R3
Rack Panel
Equipment Specifications*
| Input Characteristics | |
|
Impedance/RL Level |
75 ohms/10dB, min,
0.95-2.05 GHz; 14dB, typ, 0.95-1.75 GHz -20 dBm total maximum |
| Output Characteristics | |
| Impedance/RL | 75 ohms/10dB, min, 0.95-2.05 GHz; 14dB, typ, 0.95-1.75 GHz |
| In-Band Characteristics | |
|
Gain Freq Response Port to Port Isolation |
0 dB ± 1.0 dB ±1.0dB, .95-2.05 GHz; ±0.5dB, any 20 MHz incr. >18dB min, 20dB typ. |
| Indicators | |
|
Power |
Green LEDs indicate DC voltage and power to LNBs for those versions |
| Other | |
|
LNB DC
Voltage Output LNB current Surge Suppressor Size, Bench Top Size, Rack Mount (-R) Power |
18 ± 2 VDC 300 ma, max SiDACTOR 4.7" wide X 1.75" high X 6.5" deep 19" standard chassis; 1.75" high X 7.0" deep 115 VAC, 60Hz, 10W max, Wall Power Supply |
| Models | |
|
284-05 284-15 284-09 284-19 |
5-way splitter, No
LNB Power Insertion 5-way splitter, With LNB Power Insertion 9-way splitter, No LNB Power Insertion 9-way splitter, With LNB Power Insertion |
*+10 to +40 degrees C; Specifications subject to change without notice
