 1582-70L RF Switch



The 1582-70L provides AUTO or Manual latched relay switching between CH1 and CH2 RF signals. Alarm conditions on CH1 and CH2 are either a contact closure to ground or an open (selectable). The logic for switching can be selected to occur as follows:

1) CH1 Prime Mode - Switches from CH1 to the CH2 only if CH1 alarms and CH2 is good. Switches back to CH1 when it is no longer in alarm or when both CH1 and CH2 are in alarm.
2) Latch to CH2 Mode - Switches from CH1 to the CH2 if CH1 alarms and CH2 is good. Latches to CH2. Push Manual Reset or ground Remote Reset pin to return to CH1 if it has no alarm.
3) Minimum AUTO switching, Initial Channel Select (ICS) Mode - Switch stays on channel last selected by Manual or Remote selection after return to AUTO. AUTO switching occurs only if current channel alarms and other channel clear.

On power loss and when power is applied (as alarms at power up dictate), the selected channel remains on. The Manual Select switch and (when in AUTO) contact closures to Remote Select pins, select CH1 or CH2 independent of alarms. LEDs indicate alarm and switch conditions for CH1 and CH2 and REMOTE or MANUAL operation. RF connectors are BNC, female. Contact closure inputs are via barrier strip. Dual power supplies provide redundant power to the 1582-70L. The chassis is a 1 3/4”, rack mount.



 1582-70 RF Switch Front Panel

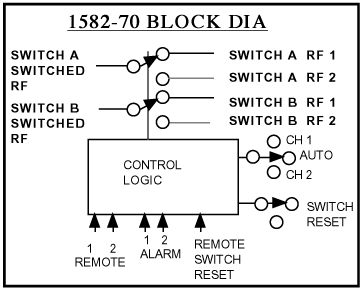

Equipment Specifications


Switch Characteristics
Impedance
Type
Isolation
Switch time
Insertion Loss
Configuration		 50 or 75 ohms (no sw termination)
Latching relay
>65dB DC - 10 MHz, >50dB to 500 MHz, >40dB to 1.5 GHz
<= 10ms
<= 1dB, <0.5dB typ (to 500 MHz); <= 2dB, <1dB typ (to 1.5 GHz)
DPDT
Controls/Indicators
Manual Select
SWITCH RESET
HISTORY RESET
LEDs		 Manually select CH1, CH2
Resets switch to CH1 if good and in latch mode; Resets REMOTE
Resets alarm history (prior occurrence of alarms now cleared) LEDs only
CH1, CH2 ON; ALARM; ALARM HISTORY; POWER; MANUAL; REMOTE
Other
Connector, ALARM
Connector, RF
Mechanical
Power		 Barrier Strip
BNC, female
19" standard chassis; 1.75"H X 12"D
90-260 VAC, 47-60Hz, 30W; Redundant power supplies

*Specifications subject to change without notice
