1582-45L Data Switch

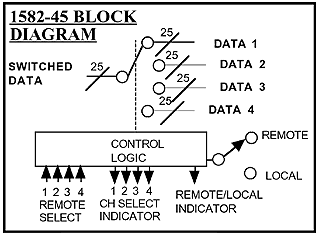

The 1582-45L provides Remote or Local latched relay switching between CH1, CH2, CH3 and CH4 data signals. The maximum data rate is 1 Mbps on the clock and data lines (8 lines) and up to 56 kbps on all other lines. Remote selection of CH1 to CH4 is by a contact closure to ground of the corresponding selection pin. Local Selection overrides Remote selection commands.

On power loss the selected channel remains on. LEDs and contact closures to ground indicate the channels selected and REMOTE or LOCAL operation.

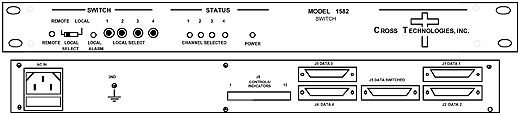

1582-45 Data Switch Front and Rear Panel

Equipment Specifications*


Data Characteristics
Input/Output
Data Rate, max
Pins switched
RS422 or RS232
1 Mbps (clock and data lines), up to 56kbps (other lines)
All 25 pins
Switch Characteristics
Type
Data direction
Isolation
Switch time
Contact resistance
Configuration		 Latching relay
Both ways, non-blocking
>40 dB
<= 10ms
<=10 ohms, < 1 ohm typ.
25P4T
Controls/Indicators
LOCAL/REMOTE switch
LOCAL Ch select
LEDs		 Slide switch selects between LOCAL and REMOTE operation
Push button switches locally select CH1, CH2, CH3, or CH4
CH1, CH2, CH3, CH4 ONLINE; POWER; LOCAL; REMOTE
Other
Connector, ALARM
Connector, Data
Mechanical
Power		 Barrier Strip
DB25, female
19" standard chassis; 1.75"H X 12"D
Single AC power supply; 90-260 VAC, 47-60Hz, 30W

*+10 to +40 degrees C; Specifications subject to change without notice
