1582-13, -14 Data Switches



The 1582-13 Data Switch provides Auto, Manual, or Remote relay switching between CH1 and CH2 data signals (RS232C or RS422) on pins 3 and 8 with pin 5 ground and the other pins of the DB9 connectors tied together. Alarm conditions are either if clock is lost for a preset 0.1 to 0.9 seconds on CH1 and CH2 or a contact closure. Switching logic can be selected as follows:

1) CH1 Prime Mode - Switches from CH1 to the CH2 only if CH1 alarms and CH2 is good. Switches back to CH1 when it is no longer in alarm or when both CH1 and CH2 are in alarm.
2) Latch to CH2 Mode - Switches from CH1 to CH2 if CH1 alarms and CH2 is good. Latches to CH2. Push Reset or ground Remote Reset pin to return to CH1 if it has no alarm or both CH1 and CH2 are in alarm.
3) Minimum Auto switching, Initial Channel Select (ICS) Mode - Switch stays on channel last selected by Manual or Remote selection after return to Auto if both channel alarms are clear or both channels are in alarm. Auto switching occurs only if current channel alarms and the other channel is clear.

When power is applied with no alarms, CH1 is selected. On power loss CH1 is the selected. The Manual Select switch and contact closures to Remote Select pins (when in Auto), select CH1 or CH2 independent of alarms. LEDs indicate alarm and switch conditions for CH1 and CH2, REMOTE or MANUAL operation, and power on. Data connectors are DB9, female. Contact closure I/O’s are via barrier strip. Dual power supplies provide redundant power. The 1582-14 Data Switch has two independent switches (A and B) in one 1 3/4” chassis.

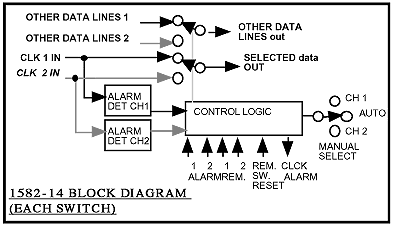

1582-14 Data Switch

Equipment Specifications*


Data Characteristics
Input/Output
Data Rate
Connector
RS422 or RS232C
512 kB/s max
DB9, female
Switch Characteristics
Type
Isolation
Switch time
Contact Resistance
Configuration
Pins switched
Pins connected
Switch after alarm
Relay
>40dB

<=10 ms

<=10 ohms, <1 ohm typ

DPDT for data lines
1, 2, 4, 6, 7, 9, 8
3, 8, 5(GND)
Settable for 0 to 0.9 sec in 0.1 sec increments
Controls/Indicators
Manual Select
LEDS		 Switches between manual or auto operation
CH1, CH2 on-line; MANUAL; ALARM CH1, CH2; REMOTE; PWR CH1, CH2
Other
Mechanical
Power		 19" standard chassis; 1.75"H X 11.5"D
90-260 VAC, 47-63Hz, 20W; Redundant power supplies

*+10 to +40 degrees C; 2000 meters max elevation; 80% max humidity; Specifications subject to change without notice
