162 Cue Trigger Switch

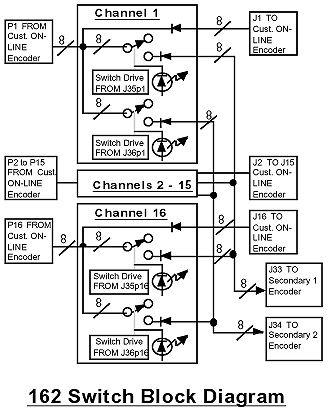

The 162 Cue Trigger Switch switches 8 contact closures from each of 16 on-line encoders to two separate 8 line outputs to two different secondary encoders by a closure to ground to the corresponding channel relay control input pin. High sensitivity relays are used for the switch. Connectors are terminal strip (with removable screw terminal mating connector) for inputs from on-line encoders, DB9 female for the signal to online encoders, DB9 female for signals to secondary encoders, and DB37 female for switch control closures. Green LED's indicate signals switched to secondary encoders and presence of DC power from each of the two power supplies.

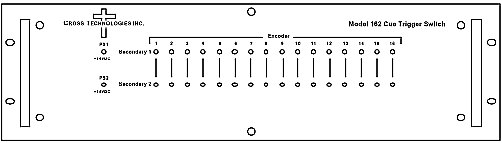

 162 Switch Front Panel



Equipment Specifications*

Inputs


From Online Encoders
Closures per encoder
Polarity
16
8
non-switched voltage must be > pass through out

Outputs


To Online Encoders
To Secondary Encoders
Polarity
16
2
positive voltage switched

Relay Specifications


Contact Current
Contact Voltage
500ma, max
50 Volts DC, max
Indicators, Other
Power, Selection
AC Power, Input
AC Fuse
Size
± 25 kHz max
90 - 260 VAC, 47-63 Hz, 30W max
2 amp slow blow (Type T) (5mm X 20mm)
19"W X 5 1/4"H X 21"D

*+10 to +40 degrees C; Specifications subject to change without notice
